Angular.js routing and templating example

How to create routing in angular.js

Now a days we are using angular.js for creating one page application, So in this post i am going to explain you that how can we create routing in angular.js,

This is a very basic tutorial to create templating using angularjs, we started using angularjs over core jquery because In angularjs you follow MVC pattern, with this you can create a good standard for your project and reuse-ability of code.

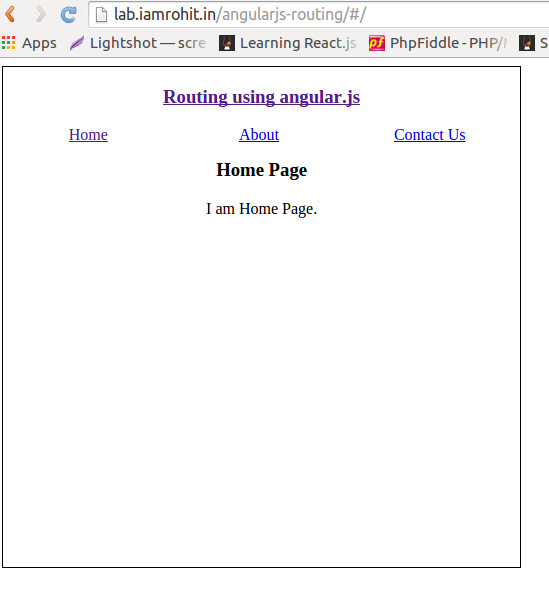

angular-routing
So lets start tutorial step by step.


Create below mention directory structure

angularjs-routing (main dir)
-index.html (file)
-css  (dir)
---style.css (file)
-js  (dir)
---app.js  (file)
-templates (dir)
---home.html (file)
---about.html (file)
---contactus.html (file)

Create index.html page this is you main landing page.

index.html

where ng-app=”rohitApp” is our angular.js module, you can replace it form your module name, but don’t forget to replace same in app.js.

<!DOCTYPE html>
<html lang="en" ng-app="rohitApp">
<head>
<title>Angular Routing and Templating</title>
<link href="css/style.css" rel="stylesheet">
</head>
<body ngController="homeController">
<h3><a href="#/">Routing using angular.js</a></h3>
<div class="box"><a href="#/">Home</a></div>
<div class="box"><a href="#about">About</a></div>
<div class="box"><a href="#contactus">Contact Us</a></div>
<div id="content">
<div ng-view> </div>
</div>
<script src="https://ajax.googleapis.com/ajax/libs/angularjs/1.3.14/angular.min.js"></script>
<script src="https://ajax.googleapis.com/ajax/libs/angularjs/1.3.14/angular-route.js"></script>
<script src="js/app.js"></script>
</body>
</html>

Where..

<div ng-view> </div>

will render all your sub pages like home, about, contactus pages which we are going to create.

Create style.css file under css folder where you will write your all css to design page

css/style.css

.box {
width:33%;
float:left;
color:green;
font-size:16px;
}
#content {
text-align:center;
margin-top:10%;
}

Now under templates directory create three pages home.html, about.html, contactus.html and paste below code in all files.

templates/index.html, about.html, contactus.html

<h3 ng-bind="pageTitle"></h3>
<p ng-bind="pageDescription"></p>

You can also use below code both works same to bind data in angular js.

<h3> {{pageTitle}} </h3>
 {{pageDescription}}

Now final turn to create angular js files, create app.js file where we declare configuration of our app and declare routing and define controllers for each page.

js/app.js

var rohitApp = angular.module('rohitApp',['ngRoute'])
.config(function($routeProvider){
$routeProvider
// routing on home page
.when('/', {
templateUrl: 'templates/home.html',
controller: 'homeController'
})
//routing on about page
.when('/about', {
templateUrl: 'templates/about.html',
controller: 'aboutController'
})
//routing on contact page
.when('/contactus', {
templateUrl: 'templates/contactus.html',
controller: 'contactusController'
})
});
rohitApp // where rohitApp is our ng-app module
.controller('homeController', function($scope) {
$scope.pageTitle = "Home Page";
$scope.pageDescription = "I am Home Page."
})
// calling abou controller
.controller('aboutController', function($scope){
$scope.pageTitle = "About Page";
$scope.pageDescription = "I am About Page."
})
// calling contact us controller
.controller('contactusController', function($scope){
$scope.pageTitle = "Contact Us";
$scope.pageDescription = "I am Contact Us Page."
})

If you have done all the task mentioned above then time to run your code on browser.
hit the your index page on browser and check it out.

Hope this will help you to understand routing feature of angular.js 🙂

If you like this post please don’t forget to subscribe My Public Notebook for more useful stuff.

Keywords: How to create template in angularjs, Angularjs routing tutorial, How to create a basic template in angularjs using routing method.
