Create animated responsive multi step form with progress bar using jQuery HTML, CSS

If your signup form is big then It is good idea to divide user signup form in multiple parts. It’ll also improve user experience, As you have seen on many websites because Now a days multi-step form become more popular than regular forms. Tt more user friendly and convenient for new user. It provides step by step procedure so that new user can easily follow these steps and get registered quickly.

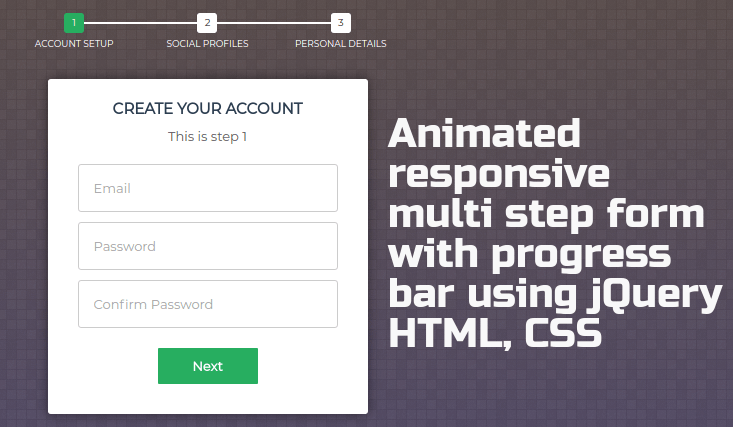

multi-step-form-css-html


Creating responsive multi step form with progress bar

Follow following steps two create quick multi step form with progress bar using jQuery HTML, CSS

HTML

Create structure form your multi step form in html, Very first you need to create a form with fieldset tag in HTML, number of fieldset depends upon the steps you want to create. Also display progress bar.

<!-- multistep form -->
<form id="msform">
	<!-- progressbar -->
	<ul id="progressbar">
		<li class="active">Account Setup</li>
		<li>Social Profiles</li>
		<li>Personal Details</li>
	</ul>
	<!-- fieldsets -->
	<fieldset>
		<h2 class="fs-title">Create your account</h2>
		<h3 class="fs-subtitle">This is step 1</h3>
		<input type="text" name="email" placeholder="Email" />
		<input type="password" name="pass" placeholder="Password" />
		<input type="password" name="cpass" placeholder="Confirm Password" />
		<input type="button" name="next" class="next action-button" value="Next" />
	</fieldset>
	<fieldset>
		<h2 class="fs-title">Social Profiles</h2>
		<h3 class="fs-subtitle">Your presence on the social network</h3>
		<input type="text" name="twitter" placeholder="Twitter" />
		<input type="text" name="facebook" placeholder="Facebook" />
		<input type="text" name="gplus" placeholder="Google Plus" />
		<input type="button" name="previous" class="previous action-button" value="Previous" />
		<input type="button" name="next" class="next action-button" value="Next" />
	</fieldset>
	<fieldset>
		<h2 class="fs-title">Personal Details</h2>
		<h3 class="fs-subtitle">We will never sell it</h3>
		<input type="text" name="fname" placeholder="First Name" />
		<input type="text" name="lname" placeholder="Last Name" />
		<input type="text" name="phone" placeholder="Phone" />
		<textarea name="address" placeholder="Address"></textarea>
		<input type="button" name="previous" class="previous action-button" value="Previous" />
		<input type="submit" name="submit" class="submit action-button" value="Submit" />
	</fieldset>
</form>



CSS

Then styling the fieldset, inputs, buttons and other form elements and add some style to progress-bar and and progress-bar connectors.

<style>

@import url(http://fonts.googleapis.com/css?family=Montserrat);


* {margin: 0; padding: 0;}

html {
	height: 100%;

	background: url('gs.png');

	background:
		linear-gradient(rgba(196, 102, 0, 0.2), rgba(155, 89, 182, 0.2)),
		url('gs.png');
}

body {
	font-family: montserrat, arial, verdana;
}

#msform {
	width: 400px;
	margin: 50px auto;
	text-align: center;
	position: relative;
}
#msform fieldset {
	background: white;
	border: 0 none;
	border-radius: 3px;
	box-shadow: 0 0 15px 1px rgba(0, 0, 0, 0.4);
	padding: 20px 30px;

	box-sizing: border-box;
	width: 80%;
	margin: 0 10%;


	position: absolute;
}

#msform fieldset:not(:first-of-type) {
	display: none;
}

#msform input, #msform textarea {
	padding: 15px;
	border: 1px solid #ccc;
	border-radius: 3px;
	margin-bottom: 10px;
	width: 100%;
	box-sizing: border-box;
	font-family: montserrat;
	color: #2C3E50;
	font-size: 13px;
}

#msform .action-button {
	width: 100px;
	background: #27AE60;
	font-weight: bold;
	color: white;
	border: 0 none;
	border-radius: 1px;
	cursor: pointer;
	padding: 10px 5px;
	margin: 10px 5px;
}
#msform .action-button:hover, #msform .action-button:focus {
	box-shadow: 0 0 0 2px white, 0 0 0 3px #27AE60;
}

.fs-title {
	font-size: 15px;
	text-transform: uppercase;
	color: #2C3E50;
	margin-bottom: 10px;
}
.fs-subtitle {
	font-weight: normal;
	font-size: 13px;
	color: #666;
	margin-bottom: 20px;
}

#progressbar {
	margin-bottom: 30px;
	overflow: hidden;

	counter-reset: step;
}
#progressbar li {
	list-style-type: none;
	color: white;
	text-transform: uppercase;
	font-size: 9px;
	width: 33.33%;
	float: left;
	position: relative;
}
#progressbar li:before {
	content: counter(step);
	counter-increment: step;
	width: 20px;
	line-height: 20px;
	display: block;
	font-size: 10px;
	color: #333;
	background: white;
	border-radius: 3px;
	margin: 0 auto 5px auto;
}

#progressbar li:after {
	content: '';
	width: 100%;
	height: 2px;
	background: white;
	position: absolute;
	left: -50%;
	top: 9px;
	z-index: -1;
}
#progressbar li:first-child:after {

	content: none;
}


#progressbar li.active:before,  #progressbar li.active:after{
	background: #27AE60;
	color: white;
}

</style>



JS

Finally, add jquery on page for handing events and adding animation on next and previous form. Remember it’ll display selected form at the moment not all.

<script>
$(function() {


var current_fs, next_fs, previous_fs;
var left, opacity, scale;
var animating;

$(".next").click(function(){
	if(animating) return false;
	animating = true;

	current_fs = $(this).parent();
	next_fs = $(this).parent().next();


	$("#progressbar li").eq($("fieldset").index(next_fs)).addClass("active");


	next_fs.show();

	current_fs.animate({opacity: 0}, {
		step: function(now, mx) {
			//as the opacity of current_fs reduces to 0 - stored in "now"

			scale = 1 - (1 - now) * 0.2;

			left = (now * 50)+"%";

			opacity = 1 - now;
			current_fs.css({'transform': 'scale('+scale+')'});
			next_fs.css({'left': left, 'opacity': opacity});
		},
		duration: 800,
		complete: function(){
			current_fs.hide();
			animating = false;
		},

		easing: 'easeInOutBack'
	});
});

$(".previous").click(function(){
	if(animating) return false;
	animating = true;

	current_fs = $(this).parent();
	previous_fs = $(this).parent().prev();


	$("#progressbar li").eq($("fieldset").index(current_fs)).removeClass("active");


	previous_fs.show();

	current_fs.animate({opacity: 0}, {
		step: function(now, mx) {
			//as the opacity of current_fs reduces to 0 - stored in "now"

			scale = 0.8 + (1 - now) * 0.2;

			left = ((1-now) * 50)+"%";

			opacity = 1 - now;
			current_fs.css({'left': left});
			previous_fs.css({'transform': 'scale('+scale+')', 'opacity': opacity});
		},
		duration: 800,
		complete: function(){
			current_fs.hide();
			animating = false;
		},

		easing: 'easeInOutBack'
	});
});

$(".submit").click(function(){
	return false;
})

});
</script>

See live demo and download source code.

DEMO | DOWNLOAD

See official github repository for more information and follow for future updates. Don’t forget to read license for using above plugin in your commercial project.
